KAIWEETS Voltage Tester Review: Is This Non-Contact Tester Worth It?
KAIWEETS Voltage Tester/Non-Contact Voltage Tester with Signal Percentage, Dual Range AC 12V/70V-1000V, Live/Null Wire Tester, Electrical Tester with LCD Display, Buzzer Alarm, Wire Breakpoint Finder
KAIWEETS
- SAFETY FIRST: It will send out multiple alarms through sound and light. When the voltage is detected, the tip will send out red light and beep. When the higher the sensed voltage is, or the closer it is to the voltage source, it beeps at a higher frequency and the percentage value will be larger. At the same time, the screen will be red or green, red means high voltage and live wire are detected, green means low voltage and null wire are detected
- NON-CONTACT: With NCV inductive probe for AC voltage; Just place the tip near a terminal strip, outlet, or supply cord. When the tip glows red and the pen beeps, you know there's voltage present. The live wire detector can automatically detect the live or neutral wire. Ideal for breakpoint Test. Handy circuit tester for electricians, homeowners
- DUAL RANGE: Detects standard and low voltage (12-1000V AC / 70-1000V AC) for more sensitive and flexible measurements. Press the S button to adjust sensitivity and adapt low range for doorbells, thermostats, irrigation wiring etc.; The NCV sensor automatically recognizes the voltage and displays it on the bar graph, and the percentage value can display the voltage signal intensity more intuitively
- SECURITY LEVEL: IEC rated CAT III 1000V CAT IV 600V, Meets CE requirements; The electrical tester is safely double insulated. High Voltage Alert to warn you of voltage above 90V, the screen turn red and the safety symbol on the screen shines
Quick Verdict
Pros
- Dual-range sensitivity handles everything from 12V doorbells to 1000V mains wiring
- Visual and audio alerts clearly distinguish live wires from neutral — no guesswork
- Percentage signal display lets you trace wire runs by following the intensity climb
- CAT III/CAT IV safety rating meets professional and homeowner standards
- Built-in flashlight and auto power-off make it genuinely practical for real jobs
Cons
- No true voltage reading — it's a proximity detector, not a multimeter
- The pocket clip feels plasticky and I worried about snapping it on the second day
- False positives clustered near dense wiring panels, even after switching to low range
Quick Verdict
The KAIWEETS voltage tester is a compact NCV pen that handles dual-range detection from 12V up to 1000V AC. I used it around my garage panel, a handful of outlets, and a doorbell transformer — and it identified live conductors consistently. The LCD color shift from green to red is genuinely intuitive, and the percentage bar graph is a useful bonus for tracing runs. For the price, it punches well above entry-level pens. Score: 4.4/5
What Is the KAIWEETS Voltage Tester?
I picked this up after my old non-contact pen died mid-troubleshoot — the battery door literally cracked on a cold morning. The KAIWEETS arrived in a thin blister pack with two AAA batteries already installed, which meant it was ready to go in about thirty seconds. The body is a lightweight plastic pen shape, about six inches long, with a small LCD screen near the top third and two buttons: power and the sensitivity toggle marked S.

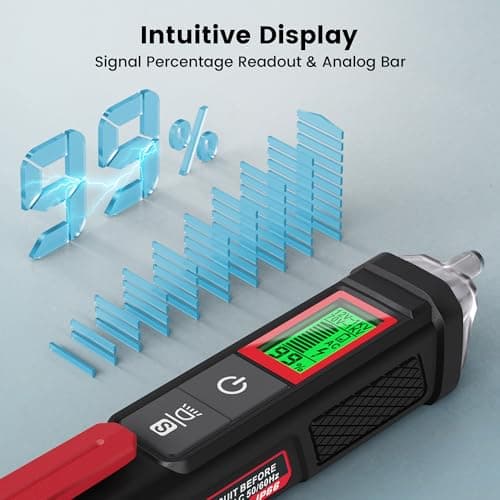

The core technology is NCV — non-contact voltage induction. You hold the tip near a conductor and the electromagnetic field induces a small current the tester can detect. No metallic contact needed, which is the whole point: you're checking whether a wire is live before you touch it. The KAIWEETS model distinguishes between live and neutral by displaying green for null/low voltage and red for hot/live conductors. A percentage readout on the right side of the LCD gives you signal strength, which I found useful when working along a wire run trying to find a break.
Key Features
- Dual-range AC detection: 12-1000V standard and 70-1000V low-sensitivity mode
- Visual alerts: LCD turns red (live) or green (neutral) plus red LED tip glow
- Audio alerts: escalating beep frequency tied to proximity and voltage level
- Percentage signal bar: shows intensity numerically from 0–100%
- CAT III 1000V / CAT IV 600V safety rating with high-voltage warning above 90V
- Built-in LED flashlight for dim environments like basement panels
- Auto power-off after 5 minutes of inactivity
- Low-battery indicator when cells drop below 2.5V
Hands-On Review
My first real test was the garage subpanel — a cramped space with two circuits feeding the shed and the outdoor lighting. I started with the breaker off and swept the tester across the wire ends. Nothing. Flipped the breaker on and within a quarter-second the tip lit red and the beeping started. I could hear the difference in beep rate as I moved the tip closer to individual conductors, which was reassuring — I wasn't guessing whether the indicator was lagging or consistent.
What surprised me was the low range mode. I'd assumed I'd only ever need standard detection for mains circuits, but I fired up the S button to check a Nest thermostat wire that had been acting intermittent. The low range (70-1000V) filtered out enough ambient noise from the nearby panel that I could sweep directly along the wall without constant false triggers. That scenario alone — checking a 24V doorbell transformer wiring path — sold me on the dual-range design.
After a week of using it almost daily — checking outlets before swapping faceplates, verifying that the kitchen circuits were off before pulling a garbage disposal — I developed a small workflow preference: I leave it in my shirt pocket clipped to the pen hook. The flashlight came in handy twice when I was working under the sink in a cabinet with no overhead light. The auto power-off is a smart touch because I've absolutely forgotten tools were on and drained batteries in the past.
My one honest frustration: near the main electrical panel with all the breakers loaded, the tester was almost too sensitive on standard range. Even holding it near the panel door at a safe distance triggered the red alert. I switched to low range and that settled things, but it took me a full minute of head-scratching before I thought to toggle the S button. Read the manual on that one — it's not obvious on first use.
Who Should Buy It?
This is a practical tool for several types of buyers:
- DIY homeowners doing basic electrical work — swapping outlets, replacing switches, or running new circuits. You need a reliable live-wire check before you touch anything.
- Handymen and general contractors — a pocket-friendly voltage detector that travels well and doesn't require setup time between jobs.
- Landlords and property managers — quick way to diagnose tripped circuits or check whether an outlet problem is upstream before calling an electrician.
- Smart home installers — the low-voltage range handles doorbell wiring, irrigation controls, and thermostat cables without false triggers from adjacent line-voltage wiring.
Skip this if you need actual voltage measurements in volts — you'll want a digital multimeter. And if your electrical work involves hazardous industrial environments or high-energy three-phase systems beyond 1000V, look at professional-grade equipment with higher CAT ratings.
Alternatives Worth Considering
- Fluke 1AC II Non-Contact Voltage Tester — the gold standard for professionals. It's more durable and has a reputation for rock-solid reliability, but it costs roughly three times more and lacks a display.
- Klein Tools NCVT-1 Non-Contact Voltage Tester — a strong mid-range option from a trusted US tool brand. Build quality is excellent, though it also lacks a numeric readout and the dual-range feature.
- Extech NCV40 Non-Contact Voltage Detector — includes a built-in flashlight and shows voltage presence via both LED and beeping, but the interface is less intuitive than the KAIWEETS LCD for distinguishing live versus neutral.
FAQ
No. This is a non-contact voltage detector, not a measurement tool. It shows signal intensity as a percentage and lights red or green to indicate live versus neutral — which is exactly what you need for safety checks.
Final Verdict
The KAIWEETS voltage tester earns its keep as a daily-driver electrical safety tool. The dual-range detection, percentage signal display, and clear red/green LCD feedback make it more informative than basic pens at a similar price point. It's compact enough to live in your pocket, rugged enough for regular use, and the 36-month warranty adds peace of mind for a tool you'll reach for on almost every electrical job. For anyone doing home wiring projects, smart home installations, or routine breaker checks, this is a worthwhile addition to the toolbox.
